Parameter

Performance

Sensor

  CMOS

Scan Mode

  640*480

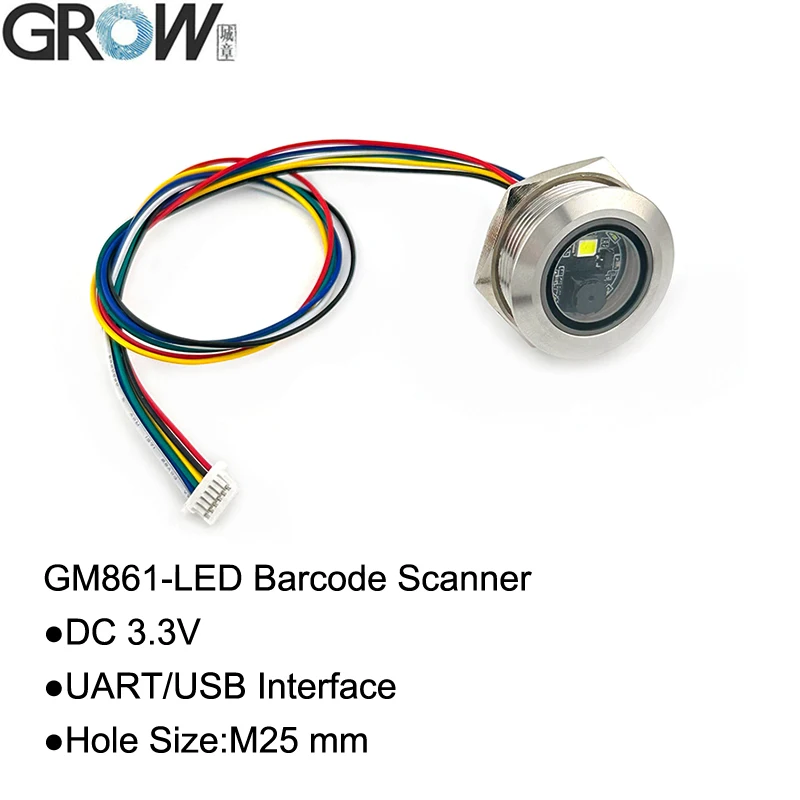

GM861-LED

Indicator Light

  White light as power on

  Green light as read successfully

GM861-LED

Fill Light

White light

Read Code Type

1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,

Code 128,

Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,

Matrix2of5, Code 39,Code11, MSI-Plessey,

GS1 Composite,GS1-Databar (RSS)

2D: QRCode, DataMatrix, PDF417, Micro QR, Micro PDF417,

Aztec

GM861-LED

Reading Distance

  5-30cm

Contrast*

＞25%

Scan Angle**

Roll:360°Pitch:65°Yaw:65°

Viewing Angle

67°(Horizontal)53°(Vertical)

Accuracy of reading*

≥10mil

Parameter

  Performance

Interface

TTL-232/USB

Size(mm)

  External diameter: 28mm Internal diameter: 25mm

  Height: 15mm thread M25

Weight

25g

Prompting Mode

LED Indicator

Operating Voltage

3.3V

Operation Current

70mA(Max)

Standby Current

≤6mA(Typical)

Startup Time

≤250mS (Typical)
